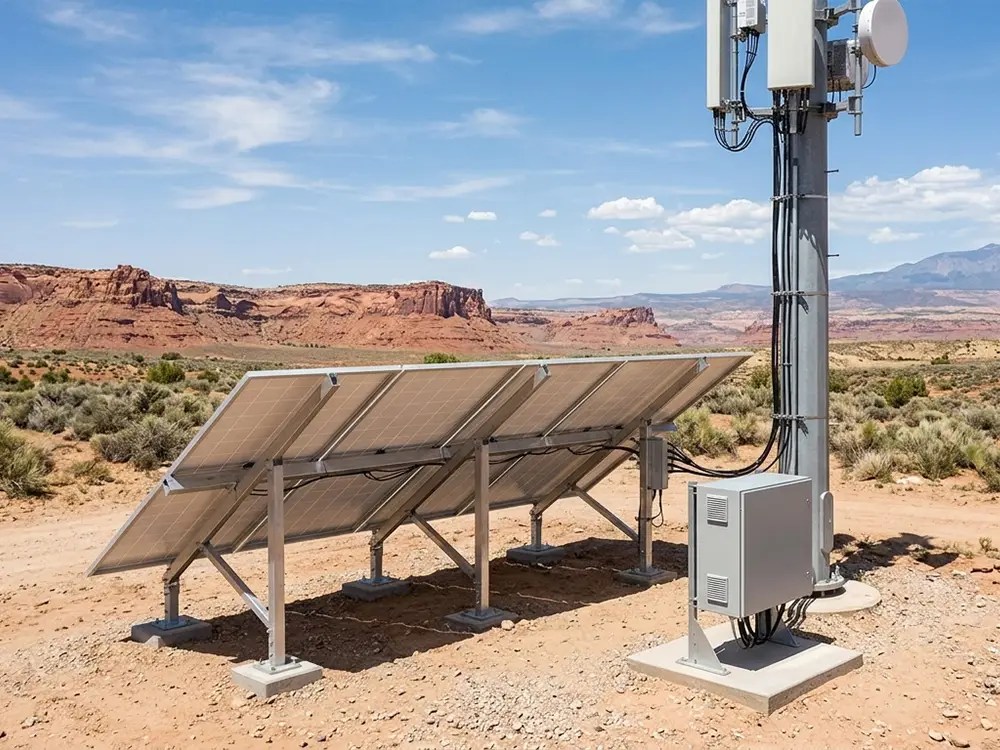

Telecom towers operate continuously.
Power systems must support transmission equipment 24 hours a day, regardless of weather or site conditions.
Many telecom sites are installed in remote regions where:
- Grid power is unstable
- Diesel supply is expensive
- Maintenance access is difficult
Solar power systems are now widely used to reduce operating cost and improve site reliability.
For telecom infrastructure, solar is not only an energy source.
It becomes part of the network stability strategy.
1. Why Telecom Towers Use Solar Power
Traditional telecom sites often rely on diesel generators.
This creates several long-term issues:
- Fuel transportation cost
- Generator maintenance
- Noise and emissions
- Fuel theft risk
- High operational expense
Solar systems reduce generator runtime significantly.
Typical benefits include:
✔ Lower fuel consumption
✔ Reduced maintenance visits
✔ Longer equipment lifespan
✔ Stable unattended operation
Most telecom projects today use:
Solar + battery systems
or
Hybrid solar + generator systems
2. Typical Telecom Tower Power Consumption
Power demand depends on:
- Tower type
- Radio equipment quantity
- Transmission system
- Cooling method
- Backup requirement
Common Telecom Equipment Load
| Equipment | Typical Power |
| BTS / RRU | 300–1500W |
| Microwave Link | 50–300W |
| Router / Switch | 20–100W |
| Cooling System | 100–1000W |
| Monitoring Devices | 10–50W |
Rural telecom towers typically operate between:
1kW – 3kW continuous load
Large telecom stations may require:
- 5kW
- 10kW or higher
3. Core Components of a Telecom Solar System
A standard telecom tower solar system includes:
Solar Array
Converts sunlight into electricity
Battery Bank
Stores energy for:
- Night operation
- Cloudy days
- Backup autonomy
LiFePO4 batteries are commonly used because of:
- Long cycle life
- Stable discharge performance
- Lower maintenance requirement
MPPT Charge Controller
Optimizes solar charging efficiency
Rectifier / Inverter
Converts and stabilizes power for telecom equipment
Remote Monitoring System
Tracks:
- Battery status
- Solar generation
- Alarms and faults
4. Why DC Power Architecture Is Preferred
Most telecom systems internally use:
-48V DC power
Whenever possible:
✔ Use direct DC architecture
Example:
- Solar → Battery → DC bus → Telecom equipment
Advantages
- Lower conversion loss
- Higher efficiency
- Reduced system complexity
- Better reliability
Adding unnecessary AC conversion increases:
- Energy loss
- Heat generation
- Failure points
5. Telecom Solar System Sizing
Step 1 — Calculate Daily Energy Consumption
Example:
- Continuous load: 2kW
- 24-hour operation
Daily energy = 48kWh/day
Step 2 — Battery Capacity Design
Telecom sites require backup autonomy.
Typical target:
- Standard telecom site: 2–3 days
- Critical infrastructure: 5 days or more
Example:
- 48kWh × 3 = 144kWh battery
Add operational margin:
✔ Recommended: 160–180kWh battery bank
Step 3 — Solar Array Sizing
Assume:
- 5 peak sun hours
48kWh ÷ 5h = 9.6kW
Real-world losses include:
- Dust accumulation
- Temperature effects
- Controller losses
- Battery charging inefficiency
✔ Recommended: 12–14kW solar array
6. Environmental Design Considerations
Telecom towers operate outdoors under harsh conditions.
High Temperature
Heat affects:
- Battery lifespan
- Electronics efficiency
- Rectifier performance
Dust and Sand
Common in:
- Desert regions
- Mining areas
Dust reduces:
- Solar panel efficiency
- Cooling performance
Wind Load
Tower sites experience continuous wind exposure.
Solar mounting structures must account for:
- Wind resistance
- Mechanical vibration
- Structural fatigue
Humidity and Corrosion
Coastal deployments require:
- Corrosion-resistant materials
- Waterproof cable management
- Sealed enclosures
7. Hybrid Solar + Generator Design
Many telecom operators use hybrid systems.
Operating logic:
Daytime
- Solar powers the site
- Excess charges battery
Night
- Battery powers telecom equipment
Low Battery / Extreme Weather
- Generator starts automatically
This structure:
- Reduces fuel usage
- Extends generator lifespan
- Improves network uptime
8. Reliability Standards for Telecom Sites
Telecom infrastructure should not be designed at minimum capacity.
Typical field standards include:
- Battery autonomy ≥ 3 days
- Solar oversizing ≥ 25%
- Industrial-grade MPPT controller
- Remote diagnostics and alarms
- Surge and lightning protection
9. Common Design Mistakes
❌ Sizing based only on average sunlight
❌ Undersized battery capacity
❌ Ignoring seasonal variation
❌ Poor enclosure ventilation
❌ No remote monitoring capability
10. What a Stable Telecom Solar System Looks Like
In field operation, a properly designed system should:
- Maintain operation through multiple cloudy days
- Recover battery after sunlight returns
- Reduce generator runtime significantly
- Support stable communication continuously
Practical Next Steps
If you are planning a telecom tower solar project:
Option 1 — Preliminary System Sizing
Provide:
- Telecom equipment list
- Continuous load data
- Site location
You receive a solar + battery sizing proposal.
Option 2 — Engineering-Level Design Support
For telecom operators, EPC contractors, or infrastructure projects:
- Full load analysis
- Solar and battery optimization
- Hybrid generator integration
- Structural recommendations
- Remote monitoring configuration
Telecom towers transmit data continuously.
The power system determines whether the network remains online.
