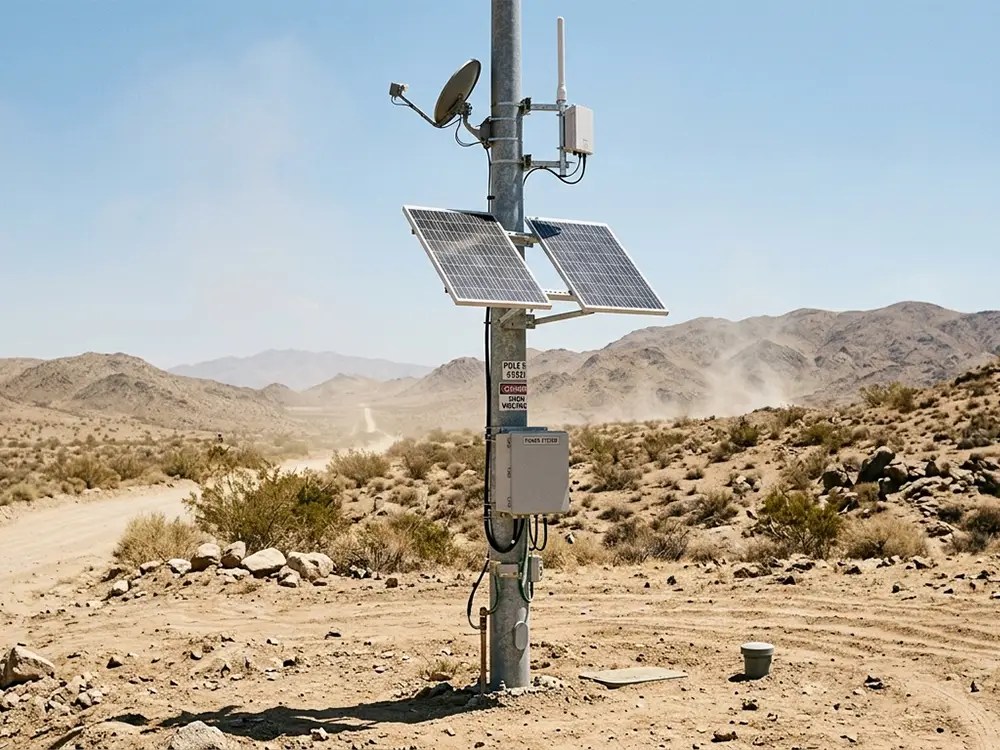

Remote communication systems are expected to operate continuously.
Most of them are installed where utility power does not exist.
Telecom repeaters, VSAT terminals, radio systems, LTE gateways, and emergency communication units all depend on stable energy supply. A short interruption can stop data transmission entirely.
In remote deployments, the communication hardware is only part of the system.
Power stability is what keeps the network online.
1. Typical Remote Communication Loads
Power demand varies by equipment type.
Common Devices
| Equipment | Typical Power |
| LTE Router | 10–30W |
| Radio Repeater | 20–80W |
| VSAT Terminal | 80–300W |
| Network Switch | 10–40W |
| Monitoring Devices | 5–20W |
Small communication sites usually operate between:
30W – 300W continuous load
Because the load runs 24 hours per day, battery and solar sizing become critical.
2. Why Solar Power Is Widely Used
Traditional generator systems create several problems:
- Fuel logistics in remote areas
- Maintenance dependency
- Downtime during servicing
- High operational cost over time
Solar power reduces these issues.
Typical advantages:
- No daily fuel requirement
- Lower maintenance frequency
- Stable unattended operation
- Lower long-term operating cost
For most projects, the practical structure is:
Solar + battery system
or
Hybrid solar + generator backup
3. Basic System Architecture
A remote communication solar system usually includes:
Power Generation
- Solar panels
Energy Storage
- Lithium battery bank (LiFePO4 preferred)
Power Management
- MPPT charge controller
Voltage Regulation
- DC-DC converter or inverter
Monitoring Layer
- Remote monitoring and alarms
4. Why DC Systems Are Preferred
Most communication equipment internally operates on DC power.
Whenever possible:
✔ Use direct DC architecture
Example:
- Solar → Battery → DC power distribution → Communication equipment
Benefits
- Higher efficiency
- Lower heat generation
- Fewer failure points
Using inverters in small communication systems often adds:
10–15% unnecessary energy loss
5. Power Consumption Calculation
Step 1 — Daily Energy Demand
Example:
- Continuous load: 120W
- 24-hour operation
Daily energy = 2880Wh/day
Step 2 — Battery Capacity
Remote communication systems require autonomy.
Typical target:
- Standard deployment: 3 days
- Critical systems: 5 days or more
Example:
- 2880Wh × 3 = 8640Wh battery
Add operational margin:
✔ Recommended: 10–11kWh battery bank
Step 3 — Solar Panel Sizing
Assume:
- 5 peak sun hours
2880Wh ÷ 5h = 576W
Real-world losses must be included:
- Dust accumulation
- Temperature effects
- Controller losses
- Battery charging inefficiency
✔ Recommended: 750–850W solar array
6. Environmental Factors That Affect Reliability
Temperature
High heat affects:
- Battery lifespan
- Power electronics stability
Low temperature reduces:
- Battery capacity
- Charging efficiency
Dust and Sand
Common in:
- Mining regions
- Desert deployments
Dust reduces solar output significantly over time.
Humidity and Rain
Communication sites near coastal or tropical regions require:
- Waterproof connectors
- Sealed enclosures
- Corrosion-resistant materials
Wind and Structural Stability
Pole-mounted communication equipment experiences vibration and wind load.
Solar structures should account for:
- Mechanical stress
- Long-term stability
7. Reliability Design Principles
Remote communication systems should not be designed at minimum capacity.
Typical field standards:
- Battery autonomy ≥ 3 days
- Solar oversizing ≥ 25%
- Industrial-grade MPPT controller
- Remote diagnostics and alarms
- Surge and lightning protection
8. Common Design Errors
❌ Sizing only for average sunlight
❌ Ignoring communication peak current
❌ No allowance for seasonal solar variation
❌ Using consumer-grade batteries
❌ Poor thermal ventilation inside enclosure
9. Typical Applications
Telecom Infrastructure
LTE repeaters and relay stations
Oil & Gas Sites
Remote operational communication
Mining Operations
Temporary and permanent communication systems
Border and Security Systems
Remote surveillance communication
Emergency Networks
Rapid deployment communication systems
10. What a Stable System Looks Like
In field operation, a properly designed system should:
- Maintain communication during multiple cloudy days
- Recover battery after sunlight returns
- Handle peak transmission load without voltage drop
- Require minimal maintenance visits
Practical Next Steps
If you are planning solar power for remote communication systems:
Option 1 — Preliminary Power Sizing
Provide:
- Equipment power list
- Daily operating schedule
- Installation location
You receive a solar and battery sizing estimate.
Option 2 — Engineering-Level Design Support
For larger or critical infrastructure projects:
- Full load analysis
- Solar and battery optimization
- Structural recommendations
- Remote monitoring integration
- Hybrid backup strategy
Communication equipment transfers data.
The power system determines whether the connection remains stable.
